The obvious way to replace EL-370 battery insulation cup

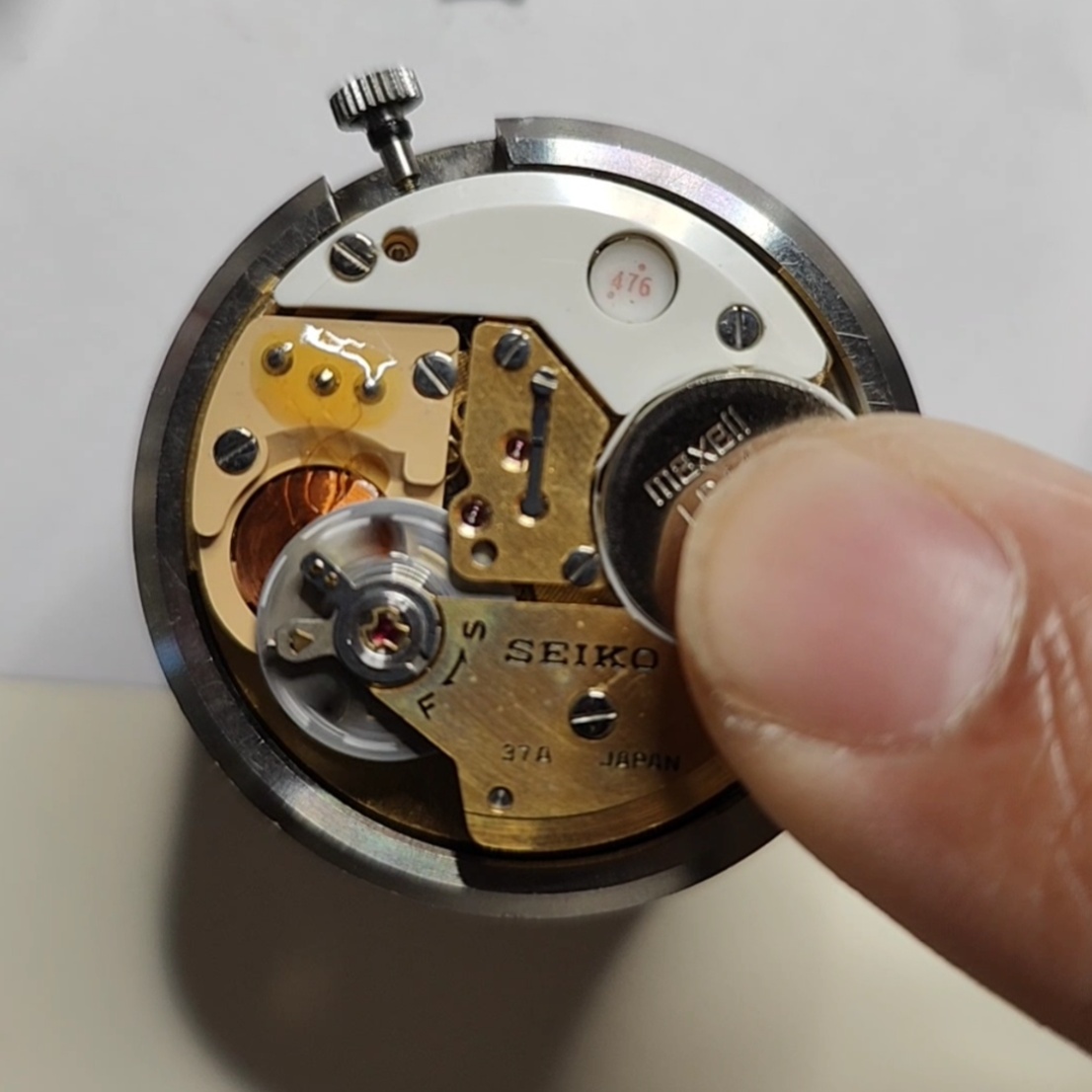

A good-looking EL-370

This is a battery insulation cup of the EL-370 electronic movement.

The cup has an opening at the bottom to expose anode (-ve end) and open top to expose the cathode (+ve end) of the battery, so there are only 2 possible places where the battery can touch: the negative terminal and the conducting spring on the battery cap.

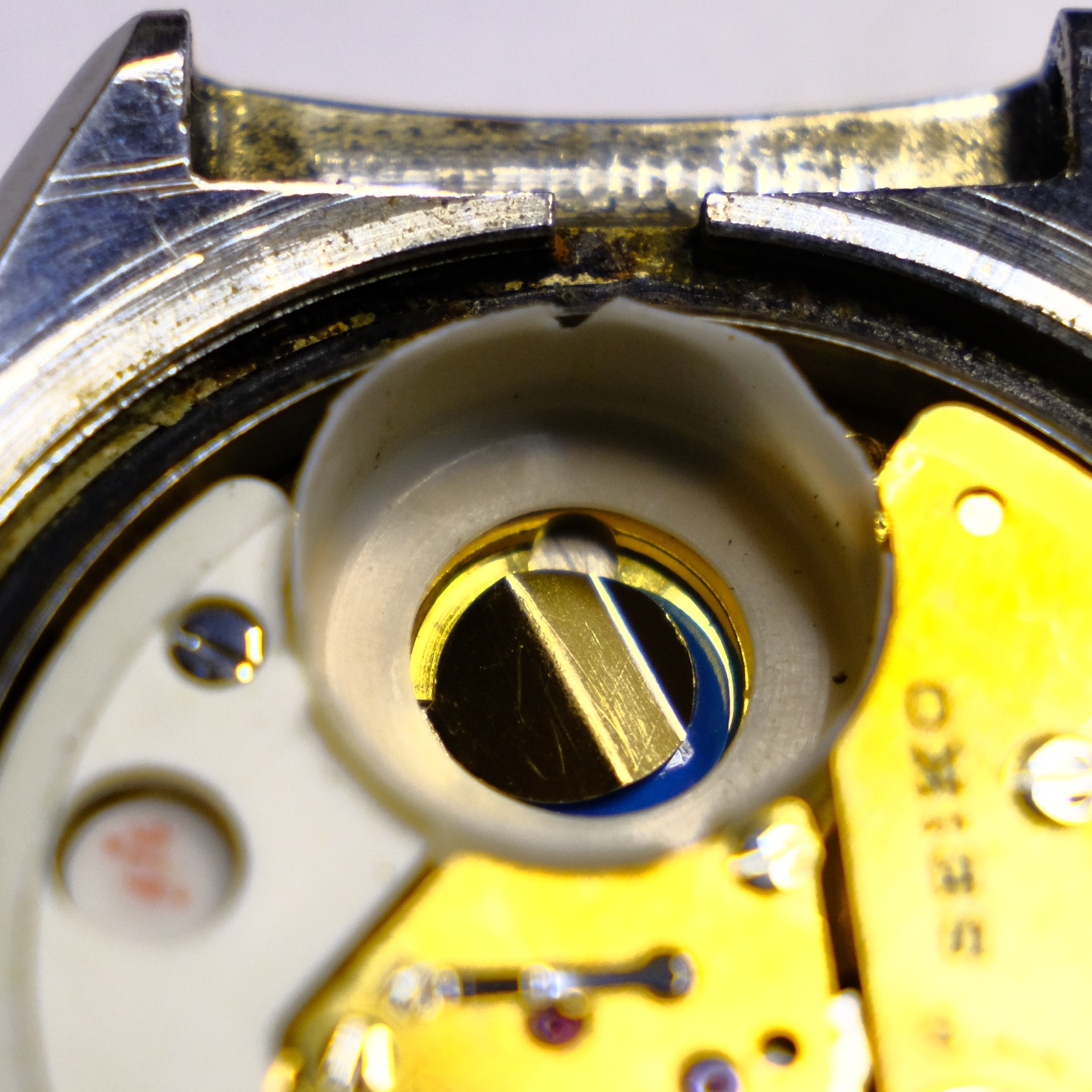

Battery insulation inside the movement

Without the insulation cup, the battery will wobble in the battery compartment of this movement within a case where the anode of the battery may touch the other parts of the base-plate causing a short.

Once a battery is shorted it very quickly runs out of juice if not also frying some parts of the watch in the process.

If the isolation cup is missing, it isn't too hard to make, obviously.

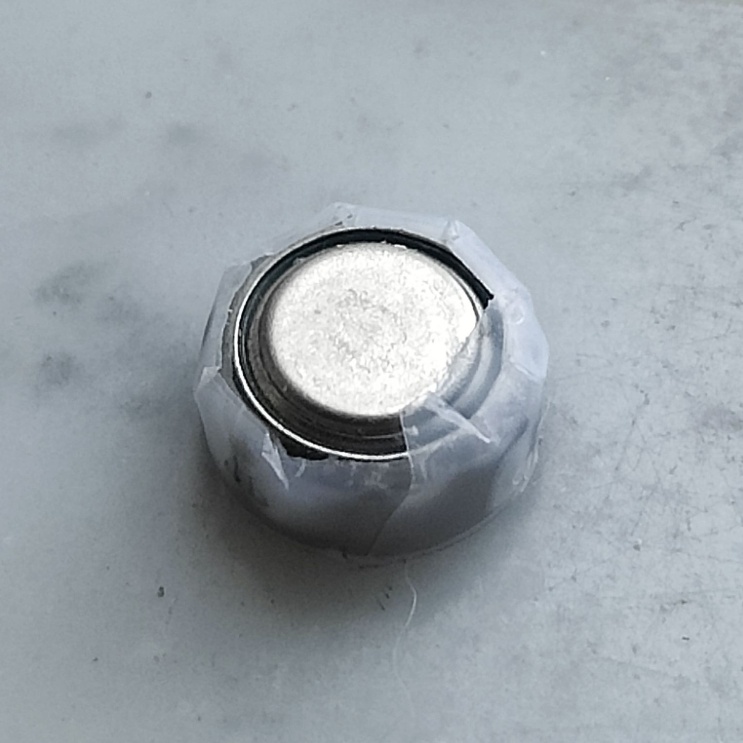

Wrapping scotch tape around the battery's side and bottom, and trip the excess.

Obviously

Or buy a donor movement that comes with a geniune insulation cup.

This 3702 received a good balance and battery insulation cup from a donor 37A
